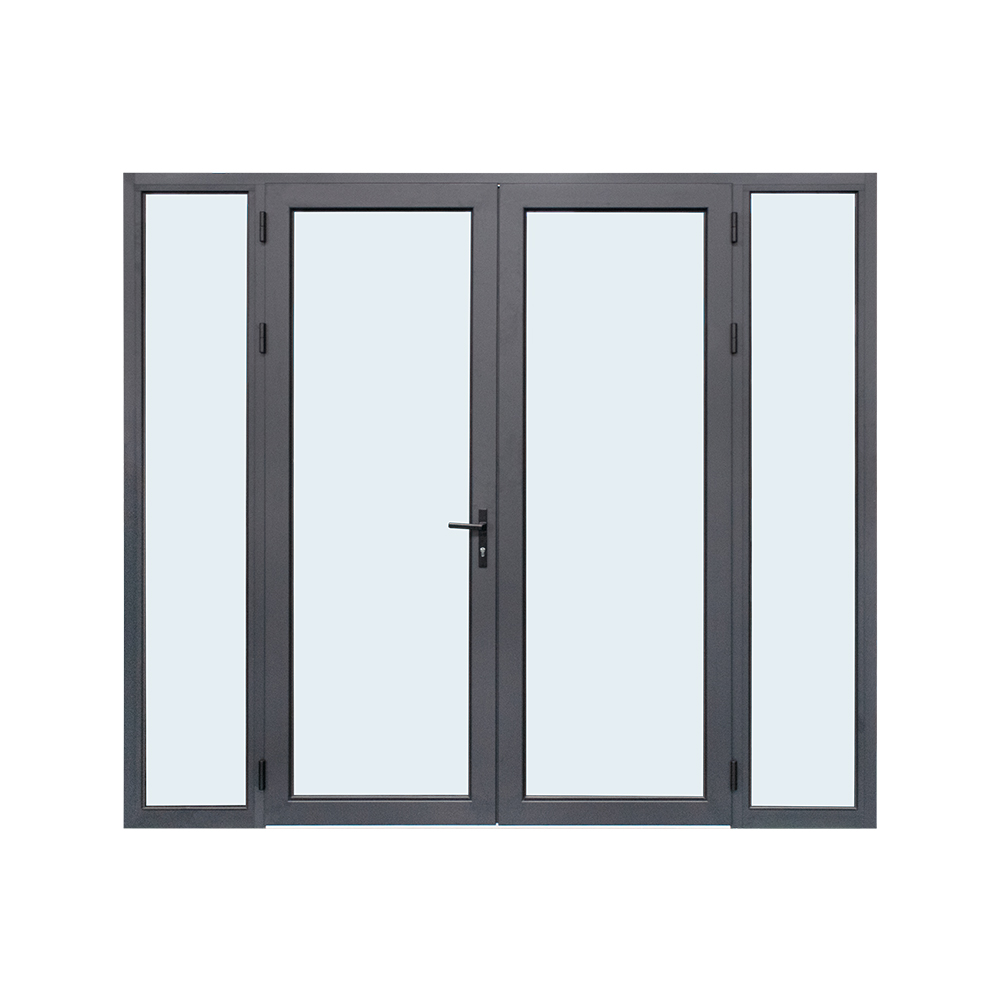

HINGED DOOR

Product-Image

HINGED DOOR

Hinged Doors Are An Ideal Way To Access A Garden, Terrace, Patio Or Covered Relaxation Area. Hinged Doors Are Versatile, Functional And Visually Attractive.Hinged Doors Are Suitable To A Large Range Of Applications, Offer Design Flexibility And Come With Quality Hardware That Can Withstand The Harsh Australian Climate.

  • Available in a large range of designs, sizes and colours.
  • Opening in and out configurations are available.
  • Fully weather sealed around the complete frame perimeter.
  • Keyed lock for added security.
  • Available with flyscreen’s or micro venetians.
Intro-Image1

Technical

  • Hi-Tech profile and reinforced material
  • Reinforced glass fiber thermal insulation bar with high loading capacity
  • Pressure extrusion for higher strength level
  • Coex wire seal to protect against moisture
  • Multi-point hardware lock system for weather sealing and burglarproofing
  • Truss structure design for increased structural strength
  • Tilt-turn system achieves the AAMA rating of CW-PG60
  • Corner locking key ensures the smooth surface joint and improves corner stability
  • Glass panel EPDM foam weather sealing strip used for better performance and easier maintenance than standard glue

Glass Options

  • Single Glass(5mm, 6mm, 8mm, 10mm….)
  • Laminated Glass(5mm+0.76pvb+5mm)
  • Double Toughened Glass(5mm+12air+5mm)
  • Toughened Laminated Glass(5mm+12air+0.76pvb+5mm)
  • Triple Toughened Glass(5mm+12air+5mm+12air+5mm)
  • Thickness of single glass: 5-20mm
  • Glass types: Frosted glass, Toughened glass, Low-e coated glass
  • Special performance glass: Fireproof glass, Bulletproof glass
  • Select from various types of glass, including but not limited to: tinted, low-e, sound-proof and burglarproof. .
Intro-Image1

Color & Coating Options

  • Superhouse Commen Color: Frosted Black, White Powder Coatingg
  • Silver grey powder coating, Silver anodising with INTERPON powder
  • Woodland grey(Satin), Ironstone(Stain), Shale Grey(Satin)
  • Ultra Silver(Gloss), Dune(Sain), Paperbark(Satin), Primrose(Gloss)
  • White Birch(Gloss), Surfmist(Matt), Architectural White(Satin)
  • Pearl White(Gloss), Silver Pearl Kinetic(Satin), Black(Satin)
  • Monument(Matt), Clear, Residential Bronze
  • Cedar, Mahogany, Honey Gum, Snow Gum
  • Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.
Intro-Image1
Intro-Image1

Hardwares&Accessories Options

  • Australia Doric hardware
  • America CMECH hardware
  • German Hoppe hardware
  • China top SMOO Hardware
  • German SIEGENIA hardware
  • China top KINLONG hardware
  • German ROTO hardware
  • German GEZE hardware
  • Select between factory-prefinished colors for fast delivery, or customized colors to better match your home.

Sound Insulation

Wind Resistance

Waterproof

Excellent Technology

Comfort Living Area

Improvement of Grade
